Cools Extra-Large Rooms
Built-In WiFi
Maximum Comfort Cool
Voice Control
Energy Reporting
Geolocation
Eco Mode

CAPACITY
- Cooling BTUH (MAX)23500.0
- Dehumidification (pts./hr.)7.2
- Cooling BTUH (MIN)22900.0
FILTER
- App Filter - WiFi ConnectBuilt-In
APPEARANCE
- InstallationEZ Mount
- Color AppearanceWhite
POWER / RATINGS
- CEER9.8
- Cooling - Watts2375/2325
- Voltage (MIN)208.0
- Sound Level (Low/High)64/67 dbA
- Voltage (MAX)230.0
- Cooling - Rated Cooling Amps AHAM10.4/11.3
WARRANTY
- Parts WarrantyLimited 1-year entire appliance
- Labor WarrantyLimited 1-year entire appliance
- Warranty NotesSee written warranty for full details
CLAIMS & CERTIFICATIONS
- ADA Compliant
- UL
- California Prop 65
- ENERGY STAR® Qualified
- AHAM
WEIGHTS & DIMENSIONS
- Overall Height18 1/4
- Approximate Shipping Weight135
- Depth to Louvers9 2/5
- Overall Depth26 5/16
- Overall Width25 7/8
- Min./Max. Window Opening Width (in.)30/39
- Minimum Window Opening Height (in.)19-1/8
- Grille Depth1 388889/500000
- Net Weight116
FEATURES
- Delay Timer24-Hour On/Off Timer
- Louver Style4-Way Adjustable
- Digital Time Temp DisplayYes
- Chassis TypeSlide-Out
- Plug TypePerpendicular/NEMA 6-20
- Rotary CompressorYes
- Area to Cool1000-1500
- Remote ControlYes
- Mounting TypeEZ Mount
- Refrigerant TypeR32
- Power Cord Length72" Minimum
- Room Air Conditioner FeaturesElectronic Control. Energy Saver. On/Off Timer. Remote Control
- Vent/Air Exchange ExhaustTop Air Discharge
- Airflow DirectionTop. 4-Way Adjustable
- Unit TypeCool Only
- Connected CapabilitiesAmazon Alexa. The Google Assistant. IFTTT
- Fan Speed Selections3 Cooling. 3 Fan Only
- Product TypeWindow
- Airflow (cfm) Roomside (hi/low)461/380
- Filter TypeOne Touch Lift-Out
- WiFi ConnectBuilt-In
- LCDI / AFCI power cordYes
- Thermostat TypeElectronic

208-230V Air Conditioner Units

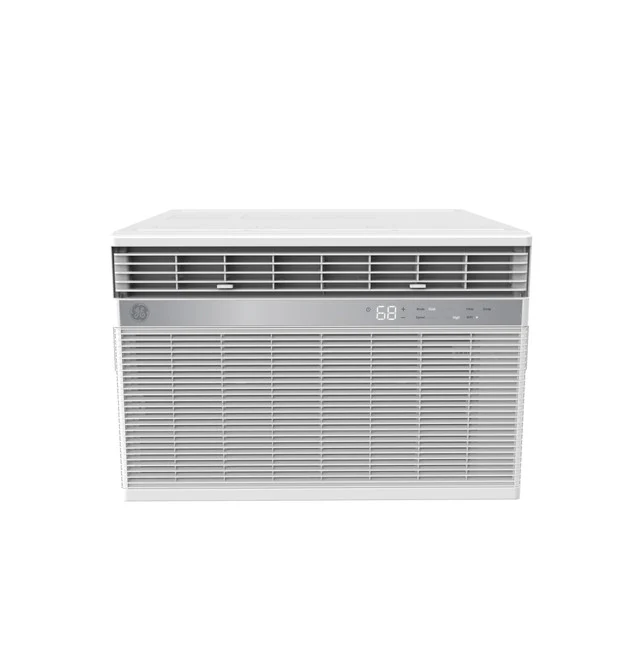

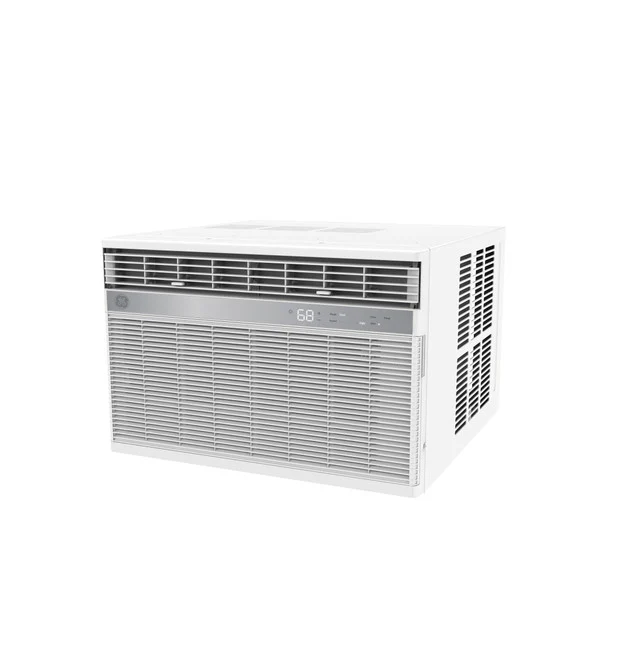

GE® ENERGY STAR® 23,700 BTU 230/208 Volt Smart Electronic Window Air Conditioner for Extra-Large Rooms

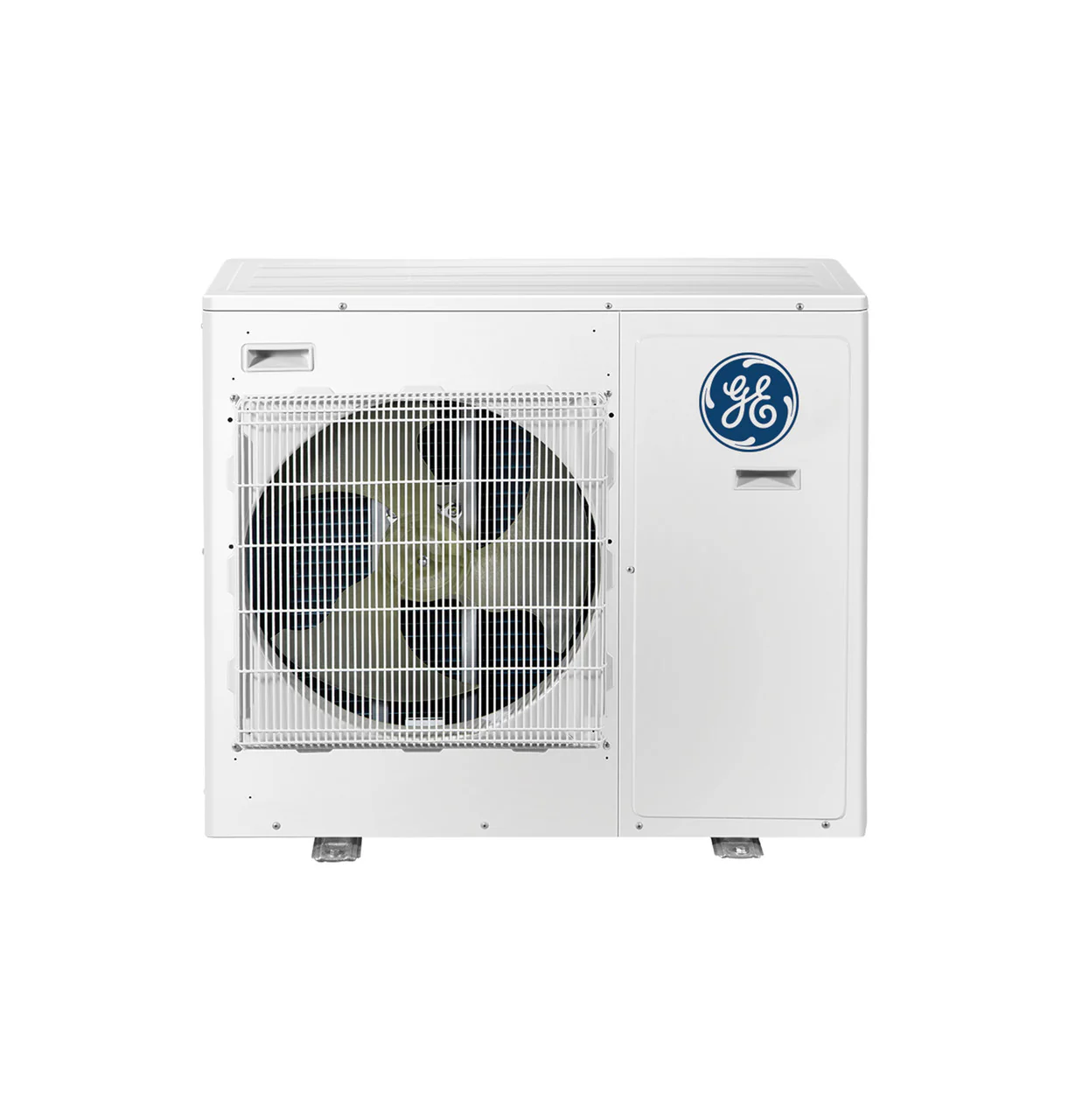

GE Endure Series 208-230V 3 Zones 24,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System

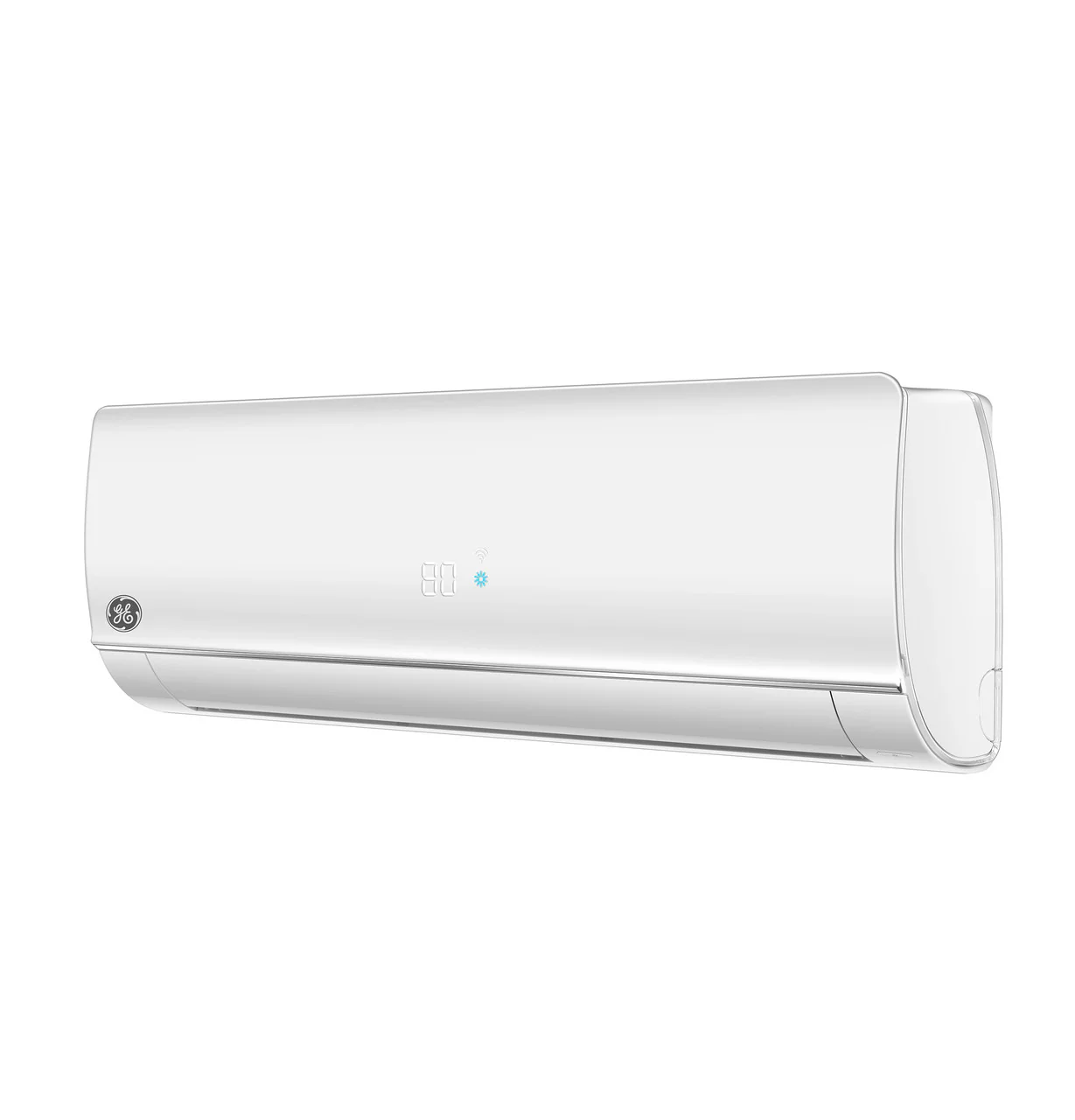

GE 208-230V 9,000 BTU Ductless Highwall Indoor Unit

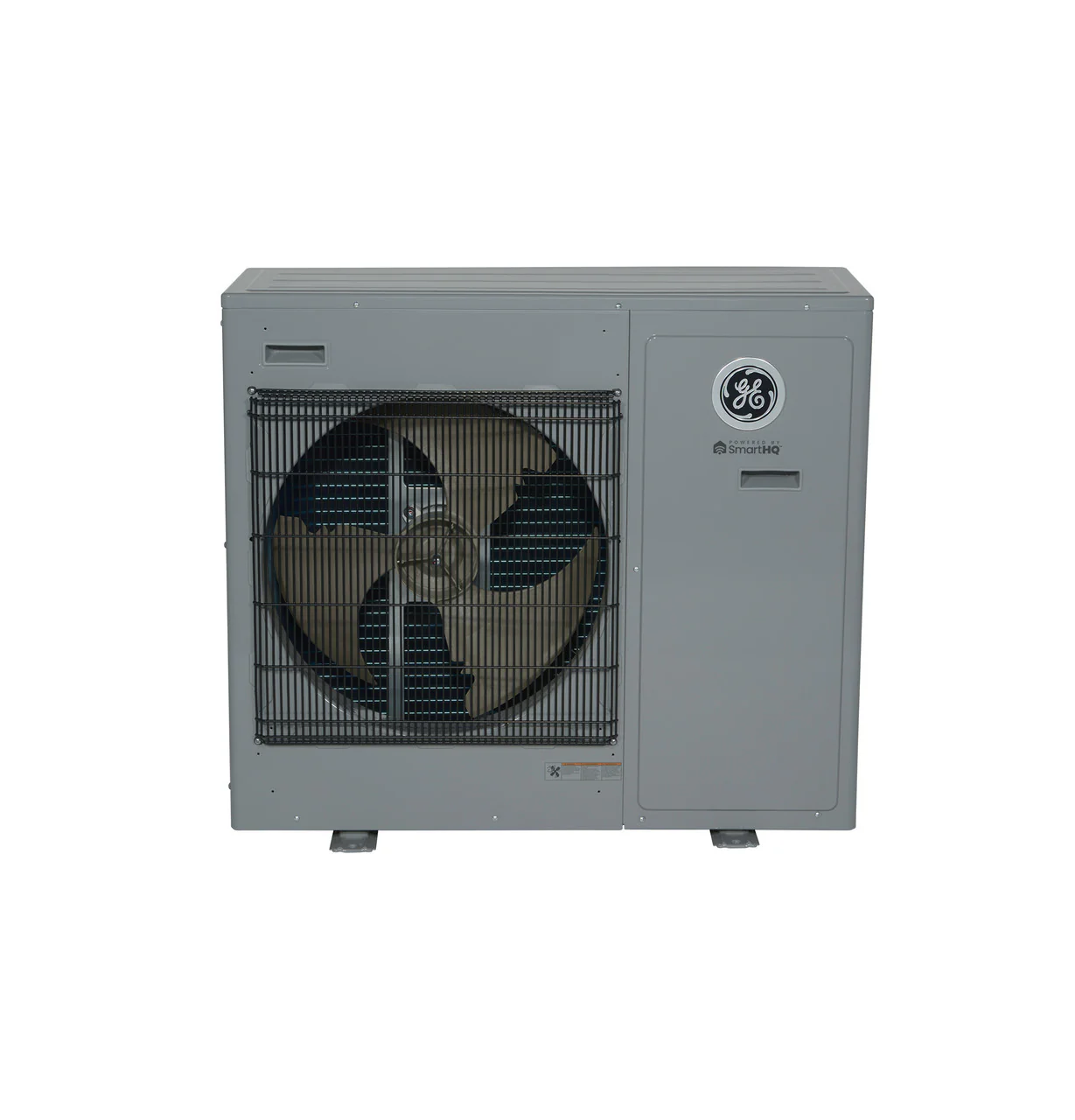

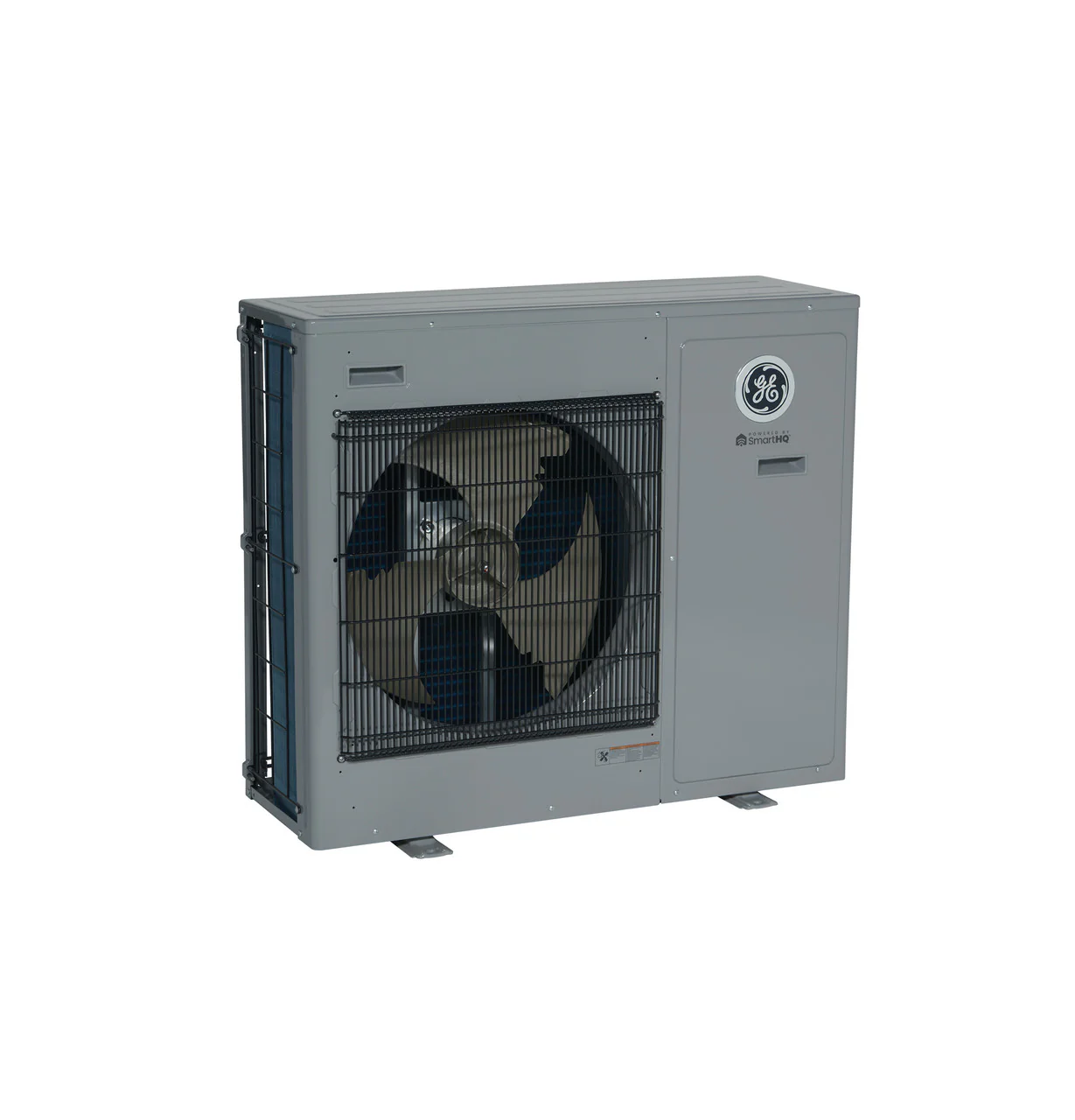

GE Endure Series 208-230V 2 Zones 18,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System
